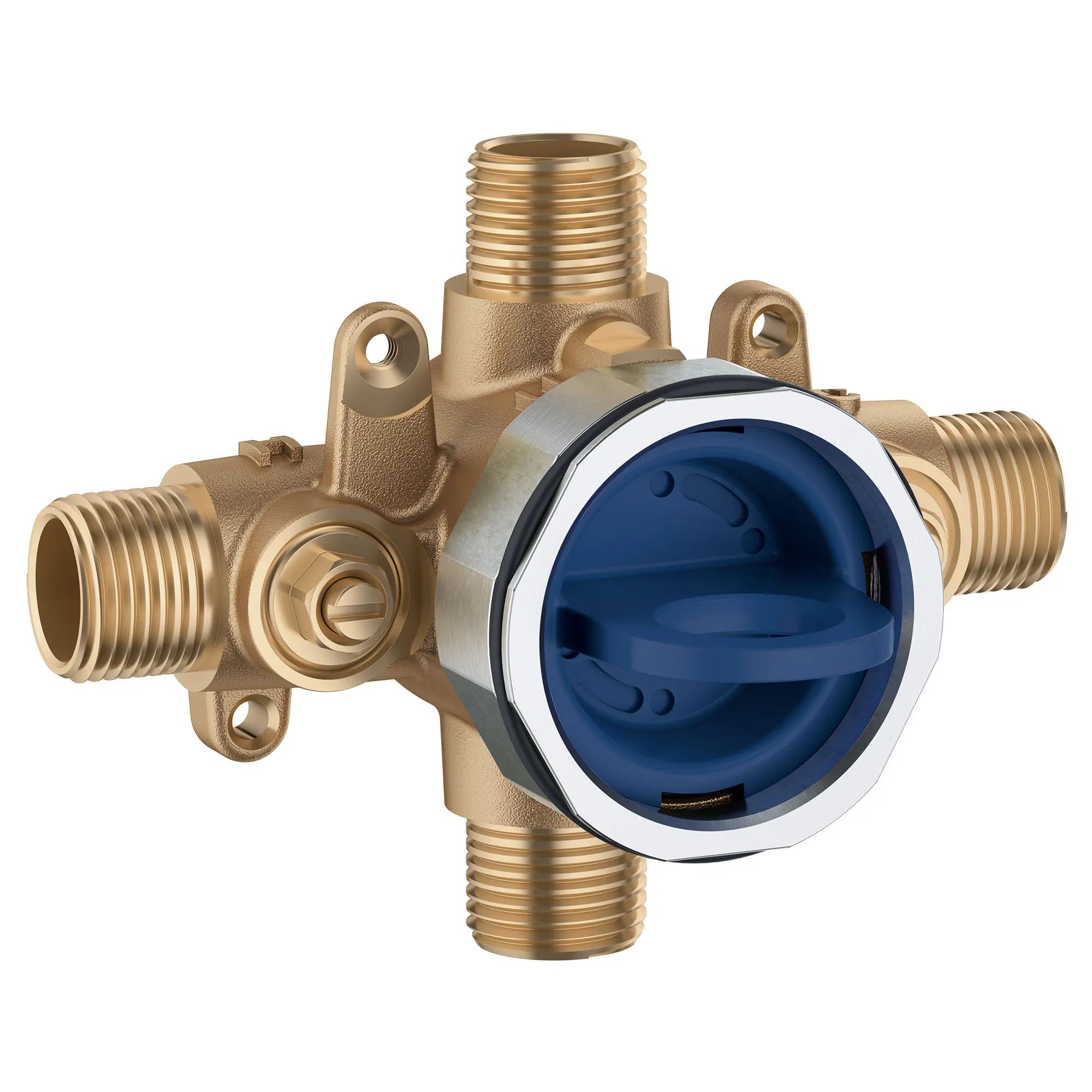

[35110000] Pressure Balance Rough-In Valve 1/2" Universal - No Finish

View GrohSafe™ 3.0 collection Model: 35110000

"GrohSafe 3.0 Pressure Balance Rough-In Valve 1/2" Universal"

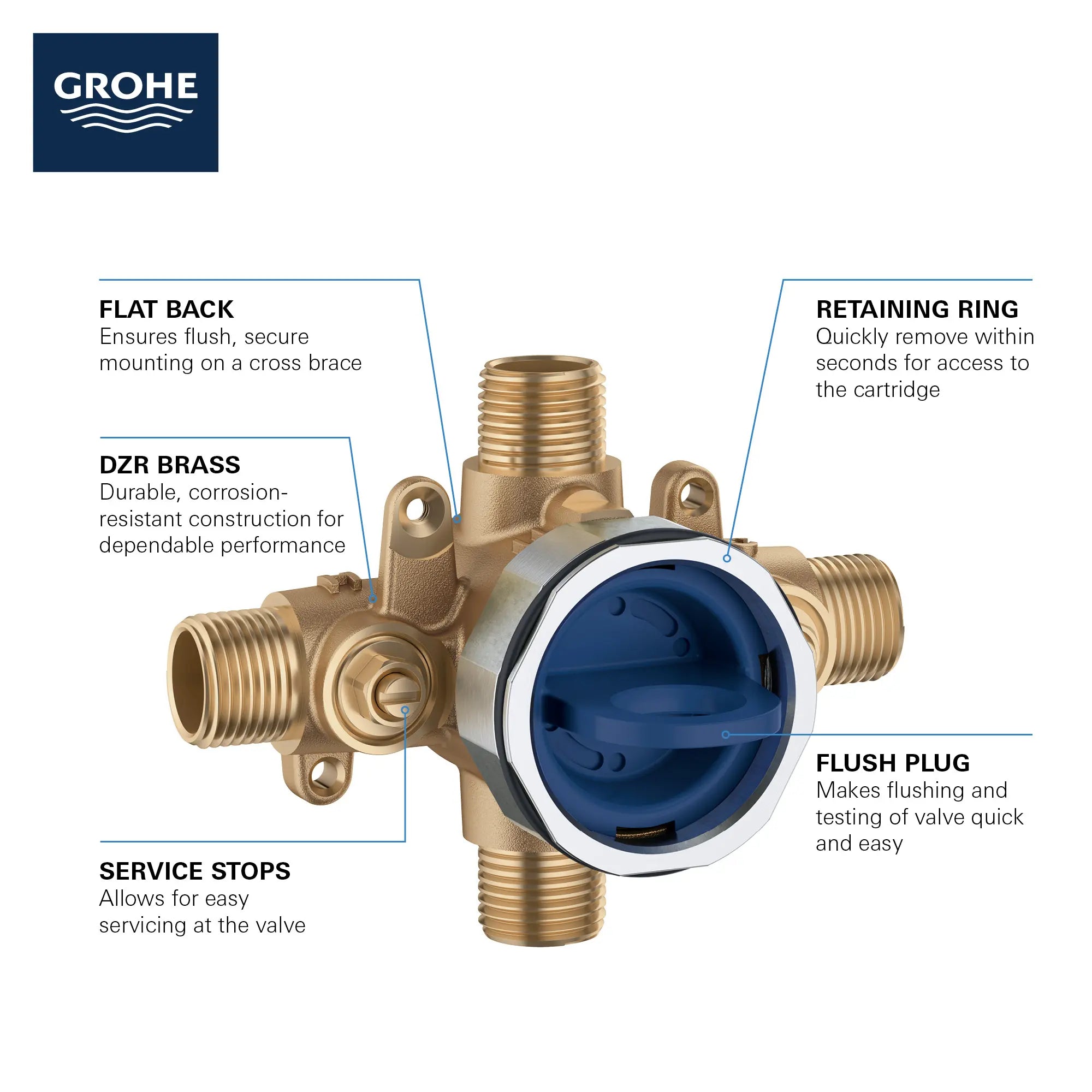

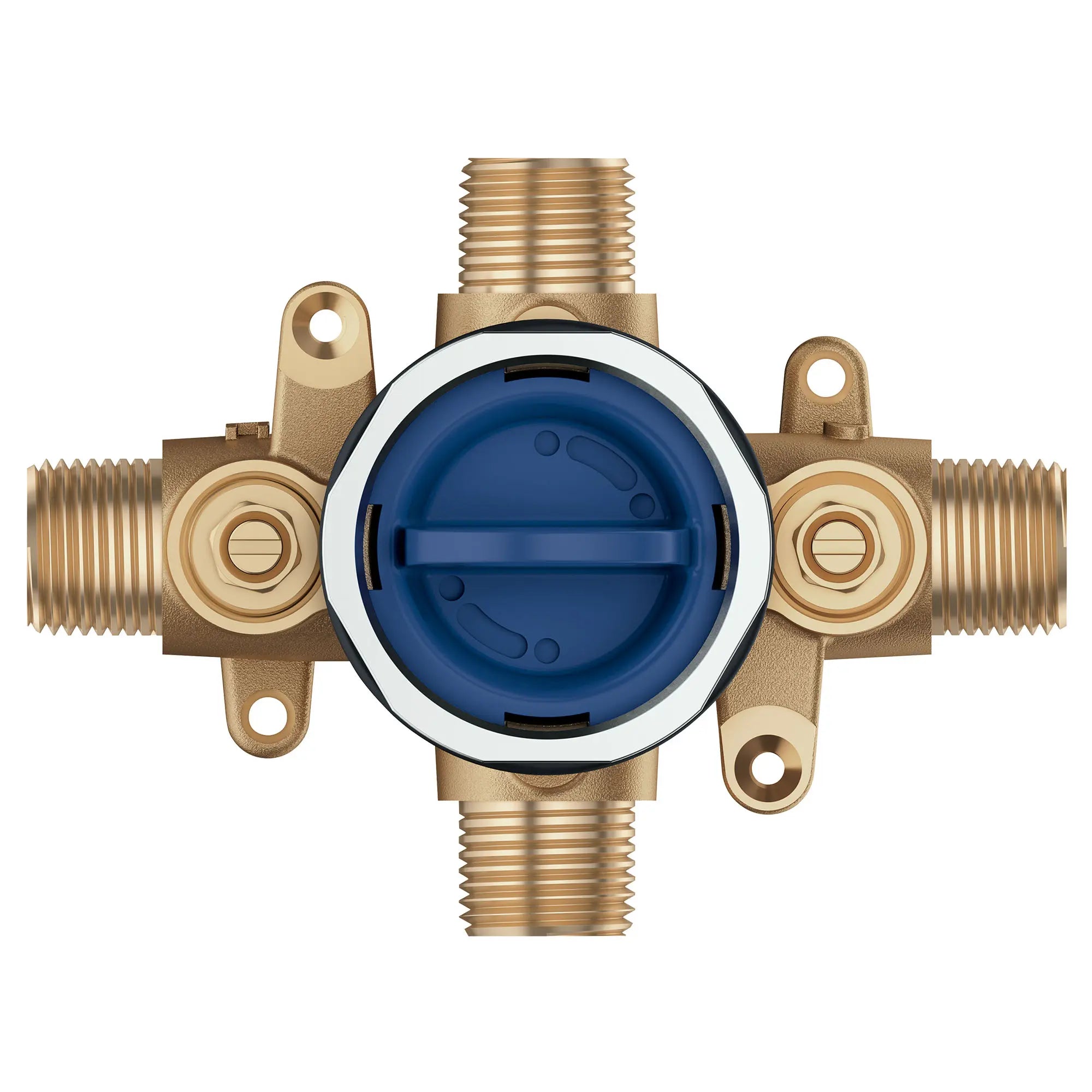

Flush plug allows valve body to be tested and flushed without the presence of the valve cartridge (ships with trim)
Can be tested using flush plug with air (200 psi) or water (300 psi)
Stainless steel retaining ring with flats secures flush plug and cartridge, eliminating the need for screws

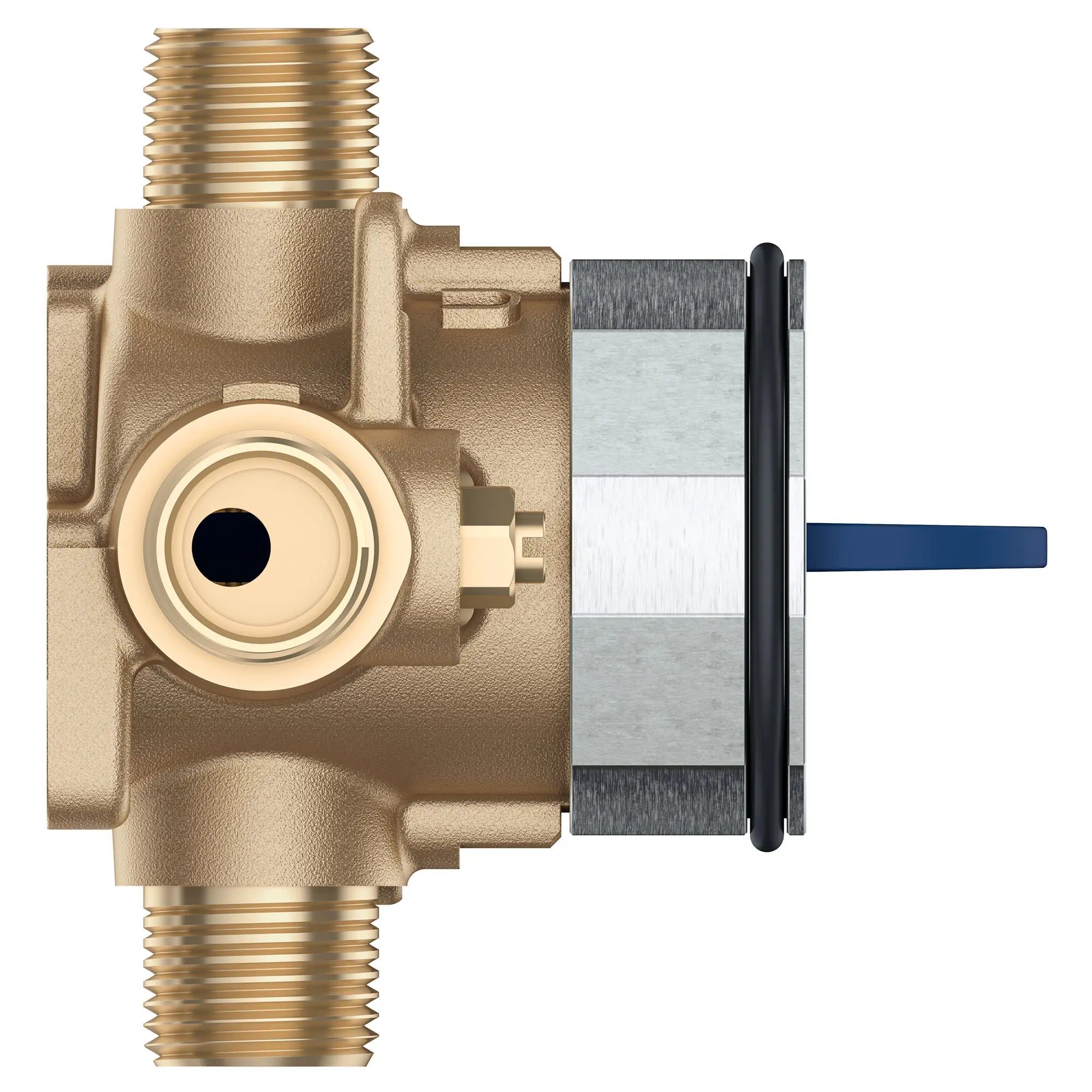

Flat back allows valve to be mounted flush against cross brace for easy and solid installation
DZR cast brass body is durable, corrosion resistant and ideal for prolonged contact with water
Back-to-back capability allowing hot and cold to be reversed quickly and easily

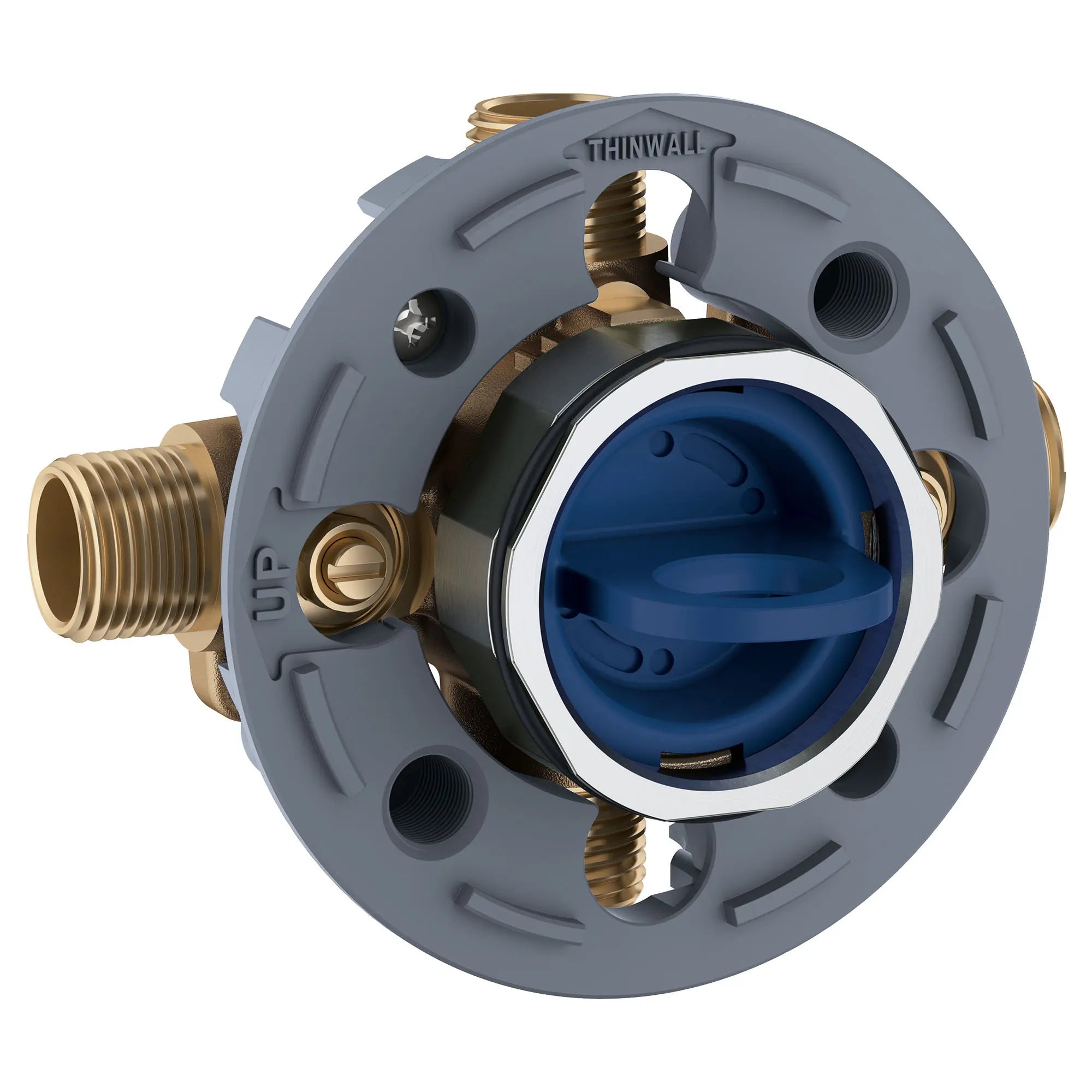

Exclusive plaster guard is designed to protect valve and act as a guide during installation

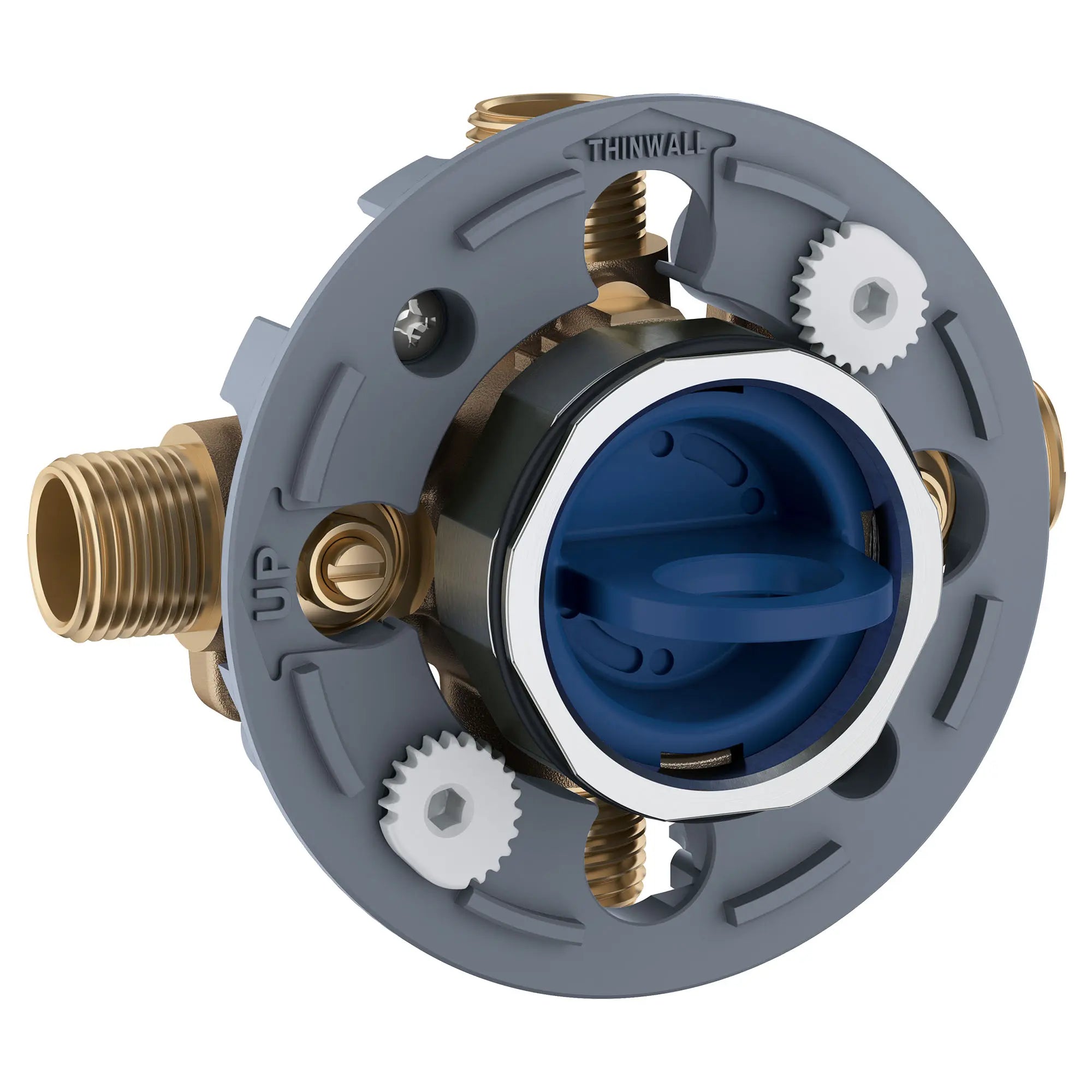

Plaster guard can serve as mounting support for thin-wall installations

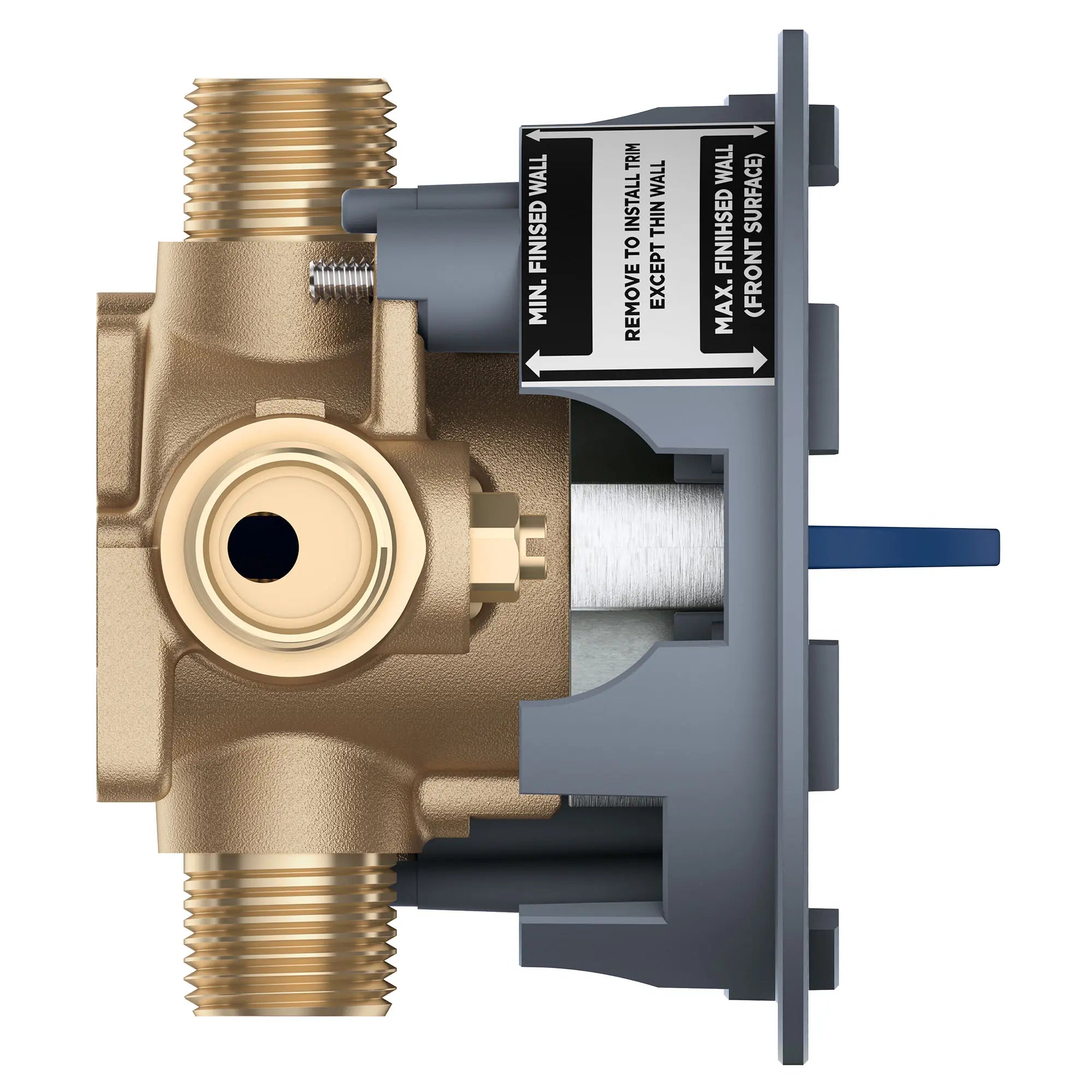

Wide rough-in range from 1-3/4 in. to 2-3/4 in. from finished wall to back of valve
Includes service stops for easy servicing at the valve
Cartridge ships with trim
Compact design with flat back for convenient installation
Can be tested and flushed without presence of cartridge
Cartridge sold separately

Downloads

Spec Sheet (pdf) Installation Guide (pdf)

Technical Specs

Fitting Connection Size

12.70 mm

Style Specs

Features

Temperature Control

Downloads

Spec Sheets (.pdf)

Installation Guide (.pdf) 161320_M985026_GrohSafe_3.0_valve_3511X_0_original

CAD Drawings 2D (.dwg) 163344_Pressure_Balance_Rough_Valve-GROHE-35110000_original CAD Drawings 2D (.dxf) 163966_Pressure_Balance_Rough_Valve-GROHE-35111000_original CAD Drawings 2D (.dwg) 255637_Rough-In_Valve-Wall_Mount-Grohe-35110000_original Revit Files (.rfa) 163375_Pressure_Balance_Rough_Valve-GROHE-35110000_original Revit Files (.rfa) 254340_Pressure_Balance_Rough_Valve-GROHE-35110000_original

from the

GrohSafe 3.0 COLLECTION

browse this collection

The GROHE GrohSafe 3.0 Shower Rough-in Valve is engineered for quick, easy installations no matter the situation. Compact body allows for a hassle-free fit even in tight spaces. Flat back ensures solid mounting on a standard cross brace, and installation on thin walls or steel is sturdy and secure. Made of DZR brass to resist corrosion, the GrohSafe 3.0 is equipped with a flush plug that allows you to test and flush lines with ease. Stainless steel fixation ring keeps flush plug and cartridge in place without screws. Cartridge sold separately.
